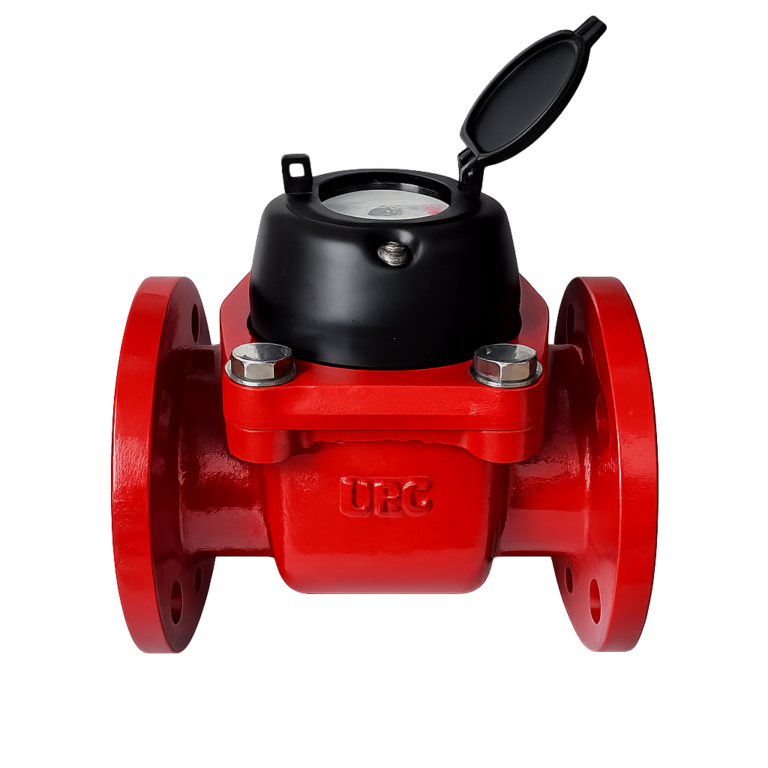

Woltman Type Water Meter (Super Hot)
The Chikara Woltman Type Water Meter (Super Hot) is a heavy-duty, high-performance flow measurement solution designed for extreme temperature hot water applications.
Built for durability and precision, this meter is ideal for high-temperature systems such as district heating, industrial boilers, and thermal plants, ensuring accurate bulk flow measurement with minimal pressure loss.
- Suitable for High Temperature up to 130°C
- Accurate Bulk Flow Measurement
- Low Pressure Loss
- Magnetic Drive Technology
- Long Working Life
Product Overview
The Woltman Super Hot Water Meter operates using an axial turbine mechanism, where the flow of water drives a turbine aligned with the flow direction.
Its advanced magnetic drive system ensures smooth transmission without direct mechanical contact, reducing wear and ensuring long-lasting performance even under extreme temperature conditions.
Key Features
Magnetic drive with low transmission resistance
Designed for high flow and bulk applications
Low pressure loss for system efficiency
Not affected by external magnetic fields
360° rotatable dry dial register for easy readability
Suitable for temperatures up to 130°C
Heavy-duty construction for harsh environments
Easy Installation & Maintenance
Technical Specifications
| Model no | CHIKARA – 04 |
| Size | 40 mm – 200 mm |
| Product Standard | ISO 4064:1993 Class B |
| Water Temperature | Up to 130°C |
| Pressure Rating | < 1.6 MPa |
| Type | Woltman (Turbine Type) |
| Transmission | Magnetic Drive |
| Register | Dry Dial, 360° Rotatable |
| Installation | Horizontal |
Benefits
Reliable performance in extreme temperature conditions
Accurate measurement for bulk hot water systems
Durable and long service life
Easy operation and reading
