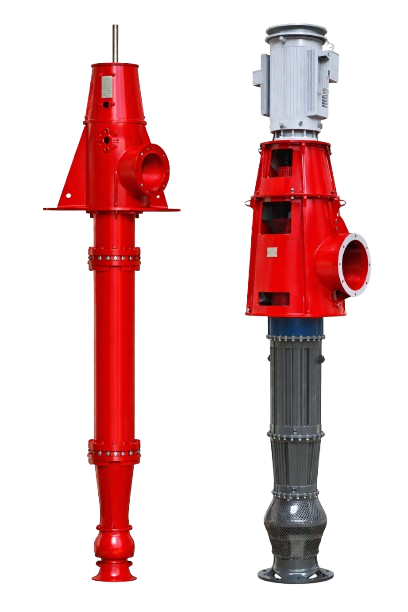

Vertical Turbine Pump
The Chikara Vertical Turbine Pump is a high-capacity and efficient pumping solution designed for deep well and high-head applications.
Engineered for reliable performance in demanding environments, this pump is ideal for handling large volumes of water with consistent pressure. Its vertical design makes it suitable for installations where space is limited and suction conditions are critical.
- High Capacity & High Head Performance
- Suitable for Deep Well Applications
- Space-Saving Vertical Design
- Reliable Continuous Operation
- Durable & Heavy-Duty Construction
Product Overview
The vertical turbine pump operates with a multi-stage impeller system submerged in the fluid. Water is lifted through the pump column by rotating impellers driven by a motor mounted at the top.
This design allows efficient pumping from deep sources such as wells, reservoirs, and tanks, ensuring stable flow and pressure even in large-scale systems.
Key Features
High precision
Back pull-out design for easy maintenance
Suitable for deep well and borewell applications
Top centerline discharge for better alignment
Centerline volute casing for thermal stability
Designed for continuous and heavy-duty operation
Optional cooling jackets for high-temperature fluids
Technical Specifications
| Parameter | Details |
|---|---|
| Delivery Size | Up to 150 mm |
| Capacity | Up to 500 m³/hr |
| Head Range | Up to 150 meters |
| Working Pressure | 16 – 25 bar |
| Temperature | Up to 180°C |
| Pump Type | Vertical Turbine |
| Installation | Vertical |
| Drive Type | Electric Motor / Diesel Engine |
| Mounting | Floor Mounted / Column Supported |
