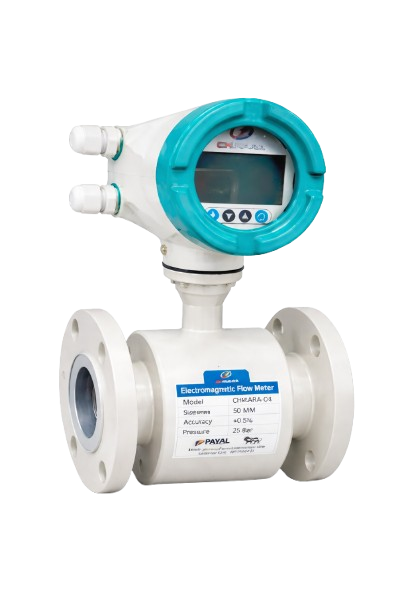

Electromagnetic Flow Meter
The Chikara’s Electromagnec Flow Meter is a highly advanced and dependable instrument, specifically
designed to accurately measure flow rates in conducve liquids, acids, alkalies, water, pulps, and slurries.
For various industrial applicaons, the flow meter provides a maintenance-free soluon with an
unparalleled blend of performance, flexibility, and cost-effecveness. Its non-intrusive design makes it perfect
for applicaons where contaminaon is a problem because it doesn’t require any contact with the fluid.
It also has a high degree of accuracy, typically within 0.5% of full scale.
- Accuracy ±0.5%
- No Moving Parts
- Bidirectional Measurement
- Low Maintenance
Product Overview
In an electromagnetic flow meter, a magnetic field is generated by a set of coils surrounding the flow tube. When a conductive liquid flows through this magnetic field, an electrical voltage is induced in the fluid. The magnitude of this induced voltage is directly proportional to the velocity of the liquid flowing through the pipe. This voltage is measured by electrodes positioned perpendicular to both the direction of the liquid flow and the magnetic field, allowing the flow rate to be accurately calculated.
Industrial Electromagnetic Flow Meters
High-Accuracy Solutions for Modern Fluid Management
Whether you are managing industrial process water or meeting regulatory requirements, our Electromagnetic Flow Meter technology provides the reliability you need. Designed for conductive liquids, our meters offer an unobstructed flow path, ensuring zero pressure drop and maximum efficiency.
Why Choose Our Magnetic Flow Meter Technology?
In the world of flow measurement, the Magnetic Flow Meter (or Mag Flow Meter) stands out for its lack of moving parts. Unlike a traditional Turbine Flow Meter which can wear down over time due to mechanical friction, our Electromagnetic Meter solutions use Faraday’s Law of Induction to provide stable, long-term accuracy.
Looking for reliable water treatment solutions?
Let’s connect and discuss how we can support your project with efficient and sustainable solutions.
Key Features
- Versatile Applications: Ideal as a Digital Water Flow Meter for utilities or a Digital Liquid Flow Meter for chemical processing.
- Advanced Connectivity: Features Wireless Flow Meter capabilities for remote monitoring and data logging.
- Off-Grid Reliability: We offer a Battery Powered Magnetic Flowmeter specifically for remote locations without stable power access.
- Regulatory Compliance: Fully compliant as a CGWA Flow Meter, ensuring you meet groundwater authority standards for extraction monitoring.
- High precision: Often within 0.5% of the reading.
- Broad Measuring Range: With a measuring range of 0.2 m3/h to 1300 m3/h, this device is suitable for a wide range of applications.
- No moving parts: Non-invasive measurement techniques guarantee excellent dependability.
- Universal Power Supply: 85 V AC-270 V AC, 50 Hz- 60 Hz/ 24 V DC.
- Bidirectional measurements: Measurements that can be made in both directions-forward and backward.
Designed for tough settings and highly corrosive or abrasive liquids, this material is resistant to wear and tear. - Unaffected by fluid characteristics: The flow meter’s measurement accuracy is unaffected by variations in the temperature, pressure, density, or v iscosity of the fluid.
- Flameproof: (IS/IEC 60079-1:2007)/ Weatherproof/ Can function in Potentially Explosive Atmosphere (IS/IEC 60079-0: 2004)
- Empty pipe alert:
Smart Digital Flow Meter Solutions
Our Digital Flow Meter range is designed for the modern age. With high-contrast backlit displays and intuitive interfaces, monitoring your flow rates has never been easier.
Product Variations:
- Electromagnetic Water Flow Meter: Optimized for municipal and irrigation use.
- Magnetic Water Flow Meter: Rugged construction for wastewater and slurries.
- Digital Water Meter: High-precision electronics for commercial billing and industrial auditing.
- Electromagnetic Water Meter: Compact designs for tight piping configurations.
Technical Specifications
Relave Humidity0-95%
| Measurement Principle | Electromagnetic |
| Line Size | 15 NB To 350 NB (½ inches to 14 inches) |
| Accuracy | 0.5% of F. S. (or ±0.5%) |
| Repeatability | ±0.1% |
| Protection | IP66 / IP67 / IP68 Transmier / Display Unit: IP65 / IP66 |
| Protecon Class | Flow Sensor Unit: IP66 / IP67 / IP68 Transmier / Display Unit: IP65 / IP66 |
| Flange Material | MS / CS / SS304 / SS316 |
| Flange Class | #150 |
| Coli Housing Material | MS / CS / SS304 / SS316 |
| Operang Temperature Range (Medium Temperature Range) |
|
| Electrical Conducvity of Liquid | >5 uS/cm |
| Process Pressure | 20 bar or 20 kg/cm2 |
| Ambient Temperature Range | -25 °C to +60 °C |
| Display Unit | |
| Display | Standard 16*2 LCD |
| Display Resoluon / Smallest Division | Flow-rate: 0.01 L/min or 0.01m3/h Totalizer: 9 digits Totalizer |
Looking for reliable water treatment solutions?
Let’s connect and discuss how we can support your project with efficient and sustainable solutions.
Key Features
High precision
Broad Measuring Range
No moving parts
Universal Power Supply
Bidireconal measurements
Unaffected by fluid characteriscs
Flameproof
Empty pipe alert
Benefits
No Pressure Drop
Low total cost
Versality
Eliminates the risk of contaminaon.
Outstanding value relave to performance.
Eliminates the risk of contaminaon.
Optimize Your Infrastructure Today
Don’t settle for outdated measurement tools. Upgrade to an Electromagnetic Water Flow Meter that offers the “fit and forget” reliability your facility deserves. Whether you need a simple Digital Water Flow Meter or a complex industrial Mag Flow Meter, we have the stock and expertise to help.
Working Principle
In Electromagnetic Flow Meter, the magnetic field is generated by a set of coils. As the conductive liquid passes through the electromagnetic field, an electric voltage is induced in the liquid which is directly proportional to its velocity. The induced voltage is perpendicular to both the liquid flow direction and the electromagnetic field direction.
Benefits
No Pressure Drop: Electromagnetic flow meters use less energy since they don’t cause a pressure drop, in contrast to conventional flow meters.
Low total cost of ownership due to low maintenance requirements and lengthy operational life.
Versatility: Due to its great flexibility and broad measuring range, it is appropriate for a diverse variety of applications like acidic chemicals, corrosive liquids, wastewater, cold/warm/hot water; and industries like food processing, pharmaceuticals, power generation industries, textile industries, pulp and paper industries, etc.
Eliminates the risk of contamination.
Outstanding value relative to performance
Application Areas
- Application Areas
- Water & Wastewater Treatment
- Food & Beverage Industry
- Chemical & Pharmaceutical Industries
- Paper & Pulp Industry
- Mining & Metallurgical Industries
- Oil and gas
- Power generation (Cooling stations)
- Effluent Treatment Plants
- Textile Industry
- Ceramic Industry
- Marine Industry
- Nuclear Industry (Cooling stations)
- Sustainable Energies Industry
Options and Customization
- Lining Material: Options for various lining materials are available to meet a range of application requirements (e.g., PTFE, hard rubber, polyurethane).
- Process Connection: Numerous flange choices are available for various process connections/ Multiple electrode materials are available to suit different process fluids.
- Display Options: Local/Integral or remote displays are offered depending on the installation requirements.
- Output Options: Multiple output options are available, including 4-20 mA, pulse, and RS485.
Installation Instructions
- The application and the customer’s requirements will determine the precise installation procedure.
- Orientation: The flow-meter can be put in any direction, although for optimal results, horizontal installation is advised. U-bend is ideal for these flow-meters. Refer to the installation manual for details.
- Pipe Conditions: For precise measurements, make sure the pipe is continually filled with liquid.
- These meters are also susceptible to damage from lightning strikes if installed outside without canopy.
Upkeep and calibration
- Maintenance: Because there aren’t any moving parts, little maintenance is needed. The only maintenance typically required is cleaning the electrodes and sensor. Nonetheless, it is advised to perform regular check-ups on the electronic components. However, deposits developing on the electrodes, air in the liquid, turbulence, and to some extent water pounding can all influence the accuracy of electromagnetic meters (Pressure transients).
- Calibration: Regular calibration guarantees the best results. To find out the recommended calibration intervals, contact the manufacturer.
Ordering details
- Product Code: Use this special product code to order this model.
- Identifying the data plate (Selecting the model): EFM-A-B-C-D-E-F-G-H-I-J-K
- A: Line Size (NB)
- B: Lining Material (PTFE, Rubber)
- C: Electrode Material (SS316L, Hastelloy ‘C’)
- D: Flange and Coil Housing (MS, SS)
- E: Class of Flange (Class 150, 300, 600)
- F: Special Paint (No (Siemens Grey), Mention Color)
- G: Output 4-20 mA (No: 0, Yes: 1)
- H: Output RS485 (MODBUS) (No: 0, Yes: 1)
- I: Display (Integrated: I, Remote: R)
- J: Pulse Output (No: 0, Yes: 1) (Pulse 0 for Telemetry)
- K: Supply Voltage (220V AC, 110V AC, 24V DC)
- E.g.: EFM-50-PTFE- SS316L-MS-150-NO-1-1-I-0-220V
- Included Accessories: Mounting brackets and power cords.
- Optional Accessories: Available upgrades or extra features that can be purchased separately are considered optional accessories.
FAQ
What is the difference between an Electromagnetic Meter and a Turbine Meter?
An Electromagnetic Meter has no moving parts and relies on magnetic fields, making it ideal for dirty or debris-heavy liquids. A Turbine Flow Meter uses a mechanical rotor, which is excellent for clean, low-viscosity fluids but requires more frequent maintenance.
Is this suitable for groundwater monitoring?
Yes, our CGWA Flow Meter models are specifically designed to meet the telemetry and accuracy standards required by the Central Ground Water Authority.
