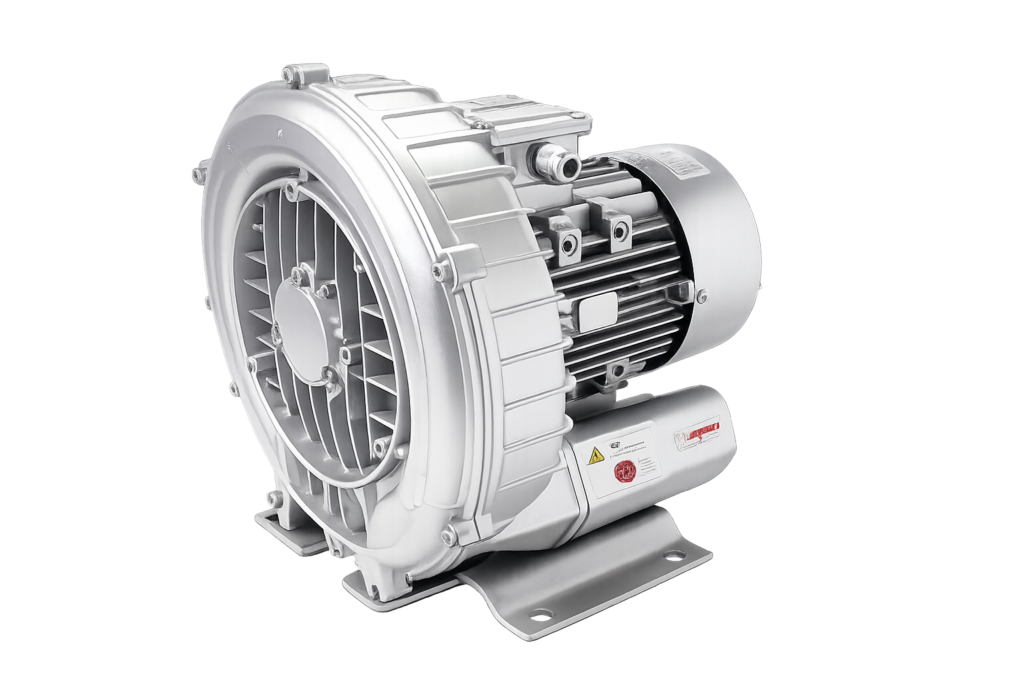

Ring Blower
Chikara Ring Blower is designed to deliver high efficiency, powerful airflow, and reliable performance for a wide range of industrial applications. Manufactured with advanced engineering and premium quality materials, it ensures low noise operaon, energy efficiency, and long service life.
Chikara Ring Blowers are widely used for air sucon, air blowing, vacuum generaon, pneumac conveying, wastewater treatment, packaging machines, prinng machines, aquaculture, and many other industrial processes. With a compact design and maintenance-free operaon, Chikara Ring Blowers provide connuous duty performance (24/7 operaon) while maintaining consistent pressure and airflow. The robust luminum body ensures durability and corrosion resistance.
Payal Corporaon is importer & Trader of Ring blowers under the brand name of CHIKARA for small size ETP & STP Plants, We assure our customer to provide the best quality with best in class aer sales service. We have taken special care in selecon of Ring blowers, that we can serve the industry with the best product.
Technical Features & Benefits
- Energy Efficient: Optimized motors designed to reduce operational costs.
- Silent Operation: Integrated internal silencers ensure a low-noise environment.
- Durability: Robust die-cast aluminum construction resists corrosion and heat.
- Low Maintenance: No wearing parts except for the bearings, ensuring a long service life.
- Easy Installation, Structure of the solid, Low vibration, Low Noise,
- The protection class is IP64 and Insulation class is F
- Automatic air relief valve for safe and efficient priming
- Easy Installation
- Structure of the solid
- Automatic air relief valve for safe and efficient priming
- Low vibration
- Low Noise
- The protection class is IP64 and Insulation class is F
Why Choose Our Regenerative Blower Technology?
A Regenerative Blower (also known as a Side Channel Blower) is the backbone of modern pneumatic systems. Unlike traditional compressors, these units use a non-contact, frictionless design to move air, ensuring minimal maintenance and a 100% oil-free discharge.
High-Performance Ring Blowers: Precision Air Solutions
Unlock the power of reliable airflow with our industry-leading Ring Blower technology. Whether you need consistent pressure for industrial manufacturing or high-volume vacuum for environmental applications, our blowers deliver whisper-quiet, oil-free performance 24/7.
Our Product Range
We offer a versatile lineup of Ring Air Blower units tailored to your specific pressure and flow requirements:
- Single Stage Ring Blower: The ideal choice for high-volume airflow at moderate pressure levels. Perfect for aeration, drying, and general vacuum applications.
- Double Stage Ring Blower: Designed for demanding tasks that require significantly higher pressure or deeper vacuum levels without increasing the footprint.
- Vortex Blower / Turbine Blower: Engineered for precision, these units utilize advanced impeller geometry to create high-velocity air streams for specialized industrial cooling and cleaning.
Optimize Your Airflow Today
Don’t settle for inefficient air systems. Whether you call it a Vortex Blower or a Side Channel Blower, we have the technical expertise to help you select the perfect unit for your facility.
Contact our engineers today for a custom quote on your next Ring Blower.
Functional Performance
Voltage : 380 ~ 415
Phase : 3
RPM : 2880
Frequency : 50 Hz ± 5%
Request Quote
Technical Specifications (THREE PHASE)
| Model | kW/HP | Voltage (V) | Current (A) | Noise (dB) | Max Air Flow (m³/hr) | Rated Vacuum (mbar) | Rated Pressure (mbar) |
|---|---|---|---|---|---|---|---|
| CHIKARA 210 | 0.25 / 0.33 | 415Δ220Δ | 1.2 / 2.0 | 53 | 80 | 90 | 90 |
| CHIKARA 211 | 0.37 / 0.5 | 415Δ220Δ | 1.6 / 2.6 | 55 | 80 | 100 | 110 |
| CHIKARA 410 | 0.75 / 1.0 | 415Δ220Δ | 2.2 / 3.8 | 58 | 145 | 140 | 150 |
| CHIKARA 411 | 0.85 / 1.2 | 415Δ220Δ | 2.4 / 4.2 | 63 | 145 | 160 | 175 |
| CHIKARA 510 | 0.85 / 1.2 | 415Δ220Δ | 2.8 / 4.5 | 63 | 210 | 165 | 180 |
| CHIKARA 511 | 1.1 / 1.5 | 415Δ220Δ | 3.5 / 6.0 | 63 | 210 | 180 | 195 |
| CHIKARA 512 | 1.5 / 2.0 | 415Δ220Δ | 3.8 / 7.7 | 70 | 210 | 190 | 205 |
| CHIKARA 513 | 2.2 / 3.0 | 415Δ220Δ | 4.5 / 8.5 | 70 | 210 | 220 | 270 |
| CHIKARA 610 | 2.2 / 3.0 | 415Δ220Δ | 5.6 / 9.7 | 70 | 318 | 230 | 250 |
| CHIKARA 713 | 4.0 / 5.5 | 415Δ220Δ | 9.5 / 13.9 | 72 | 318 | 270 | 330 |
| CHIKARA 811 | 5.5 / 7.5 | 415Δ | 12.9 | 74 | 530 | 275 | 300 |
| CHIKARA 812 | 7.5 / 10.0 | 415Δ | 16.7 | 74 | 530 | 350 | 395 |
TECHNICAL SPECIFICATIONS (SINGLE PHASE)
| Model | kW/HP | Voltage (V) | Current (A) | Noise (dB) | Max Air Flow (m³/hr) | Rated Vacuum (mbar) | Rated Pressure (mbar) |
|---|---|---|---|---|---|---|---|
| CHIKARA 110 | 0.18 / 0.25 | 230 | 0.85 | 48 | 56 | 70 | 80 |
| CHIKARA 210 | 0.25 / 0.33 | 230 | 1.8 | 52 | 80 | 90 | 90 |
| CHIKARA 211 | 0.37 / 0.5 | 230 | 2.6 | 58 | 80 | 100 | 110 |
| CHIKARA 410 | 0.75 / 1.0 | 230 | 5.8 | 63 | 145 | 140 | 150 |
| CHIKARA 511 | 1.1 / 1.5 | 230 | 8.2 | 70 | 210 | 170 | 195 |
| CHIKARA 512 | 1.5 / 2.0 | 230 | 9.8 | 70 | 210 | 190 | 205 |
| CHIKARA 513 | 2.2 / 3.0 | 230 | 10.5 | 72 | 210 | 220 | 270 |
| CHIKARA 610 | 2.2 / 3.0 | 230 | 12.1 | 78 | 318 | 230 | 250 |
Applications
From water treatment to food packaging, our Ring Blower systems are the preferred choice for:
- Aquaculture & Aeration: Maintaining oxygen levels with reliable, continuous air.
- Pneumatic Conveying: Moving bulk solids and powders efficiently.
- Industrial Vacuums: Dust extraction and debris removal in wood and metalworking.
- Packaging: Vacuum lifting and hold-down tables for CNC machining.
- Printing: Paper transfer, Excess removal, Mail sorting, Punch collection
- Bottling/Food: Bottling, Food processing, Labelling, Feeding
- Manufacturing: Vacuum transfer, Stamping, Scrap collection, Batch processing, Air bearing, Furnace efficiency, Parts processing
- Chemical Processing: Chemical transfer, Pellets transfer, Hopper processes, Aeration
- Textile: Industrial sewing machines, Automatic loom machines, Excess cloth removal, Knitting
- Other: Paper drying, Conveying, Dental, Laundry, Clean rooms, Photography, Spas, Tank aeration

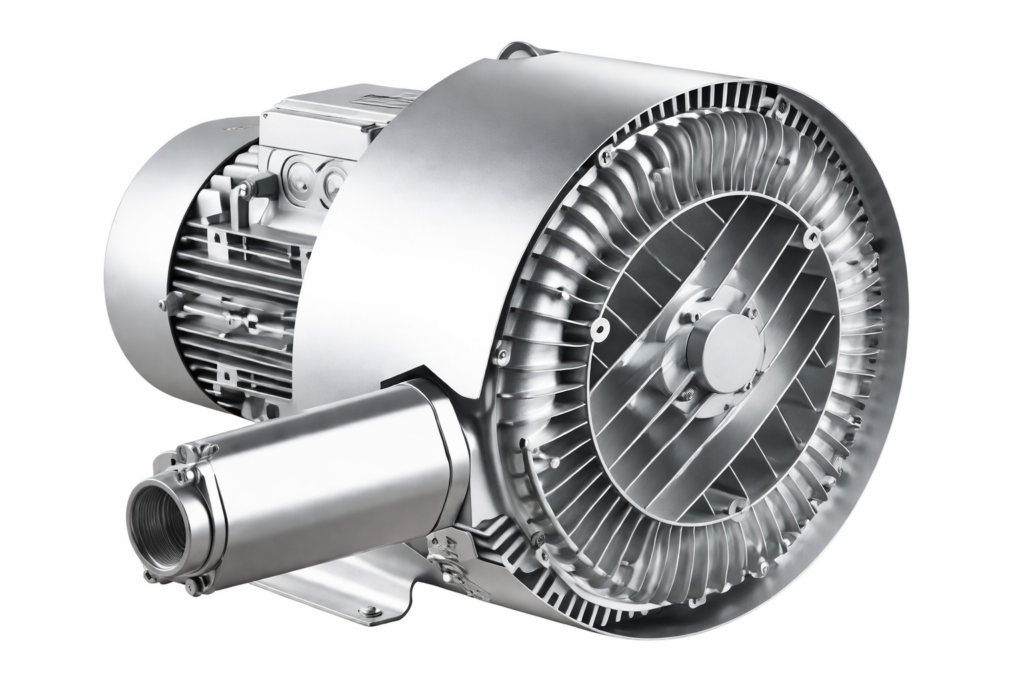

Double Stage Ring Blower
Chikara Double Stage Ring Blower is specially designed for applications requiring higher pressure and vacuum performance. With a dual impeller (double stage) design, it delivers increased air pressure compared to single stage blowers while maintaining energy efficiency and low noise operation.
Engineered with precision technology and high-quality aluminum casing, the Chikara Double Stage Ring Blower ensures durability, connuous duty operation (24/7), and maintenance-free performance. Its oil-free working system makes it ideal for clean air applications and industrial environments.
Double stage configuration allows the air to pass through two compression stages, resulting in higher pressure output and improved vacuum capacity without compromising reliability.
Advantages
- Easy Installation
- Structure of the solid
- Low vibration
- Low Noise
- The protection class is IP64 and Insulation class is F
