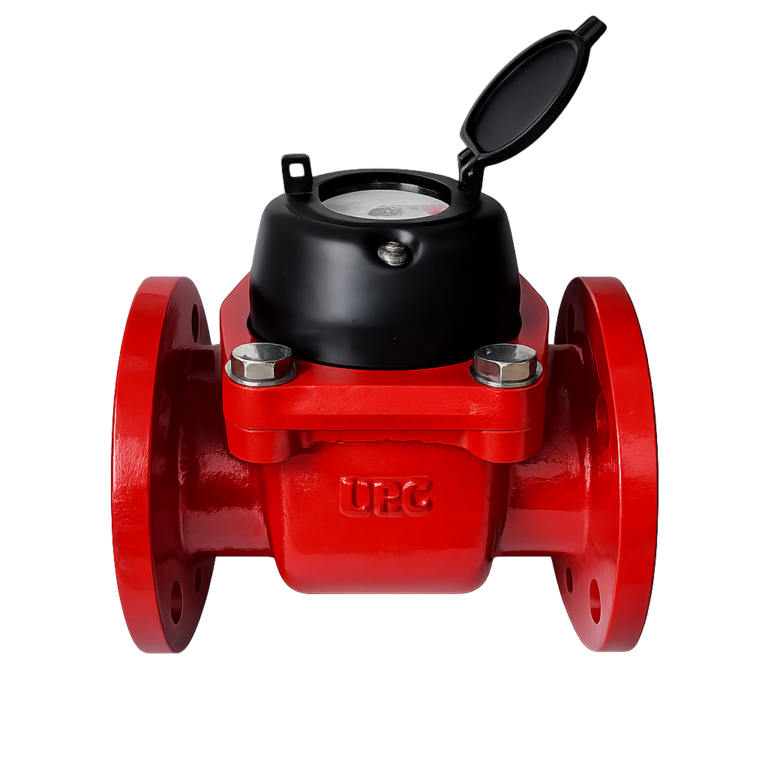

Woltman Type Water Meter (Hot)
The Chikara Woltman Type Water Meter (Hot) is a heavy-duty, high-capacity flow measurement device designed specifically for hot water applications in industrial and municipal systems.
Engineered for large pipelines and elevated temperature conditions, this meter ensures accurate bulk flow measurement with minimal pressure loss and long-term durability.
- Accurate Bulk Flow Measurement
- Suitable for Hot Water Applications
- Low Pressure Loss
- Magnetic Drive Technology
Product Overview
The Woltman water meter operates using an axial turbine mechanism where water flows parallel to the turbine axis, causing it to rotate proportionally to the flow rate.
Its magnetic drive system ensures smooth and reliable transmission while preventing leakage and reducing mechanical wear. The design supports high flow rates with excellent accuracy, making it ideal for hot water distribution systems.
Key Features
Magnetic drive with low transmission resistance
Designed for high flow and bulk measurement
Low pressure loss for efficient performance
Not affected by external magnetic fields
360° rotatable dry dial register for easy reading
Suitable for hot water applications up to 90°C
Technical Specifications
| Model no | CHIKARA – 04 |
| Size | 40 mm – 400 mm |
| Product Standard | ISO 4064:1993 Class B |
| Water Temperature | Up to 90°C |
| Pressure Rating | < 1.6 MPa |
| Type | Woltman (Turbine Type) |
| Transmission | Magnetic Drive |
| Register | Dry Dial, 360° Rotatable |
| Installation | Horizontal |
